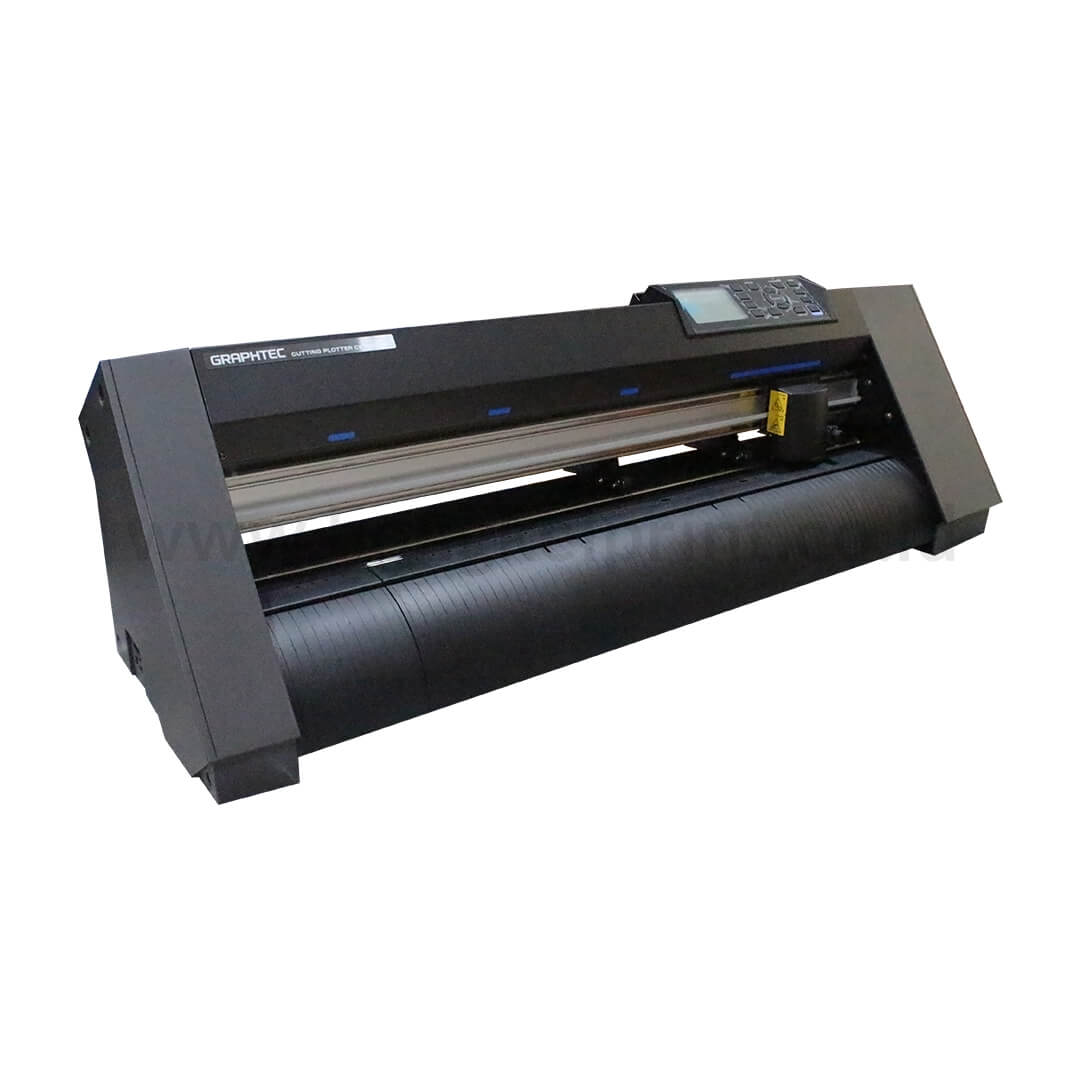

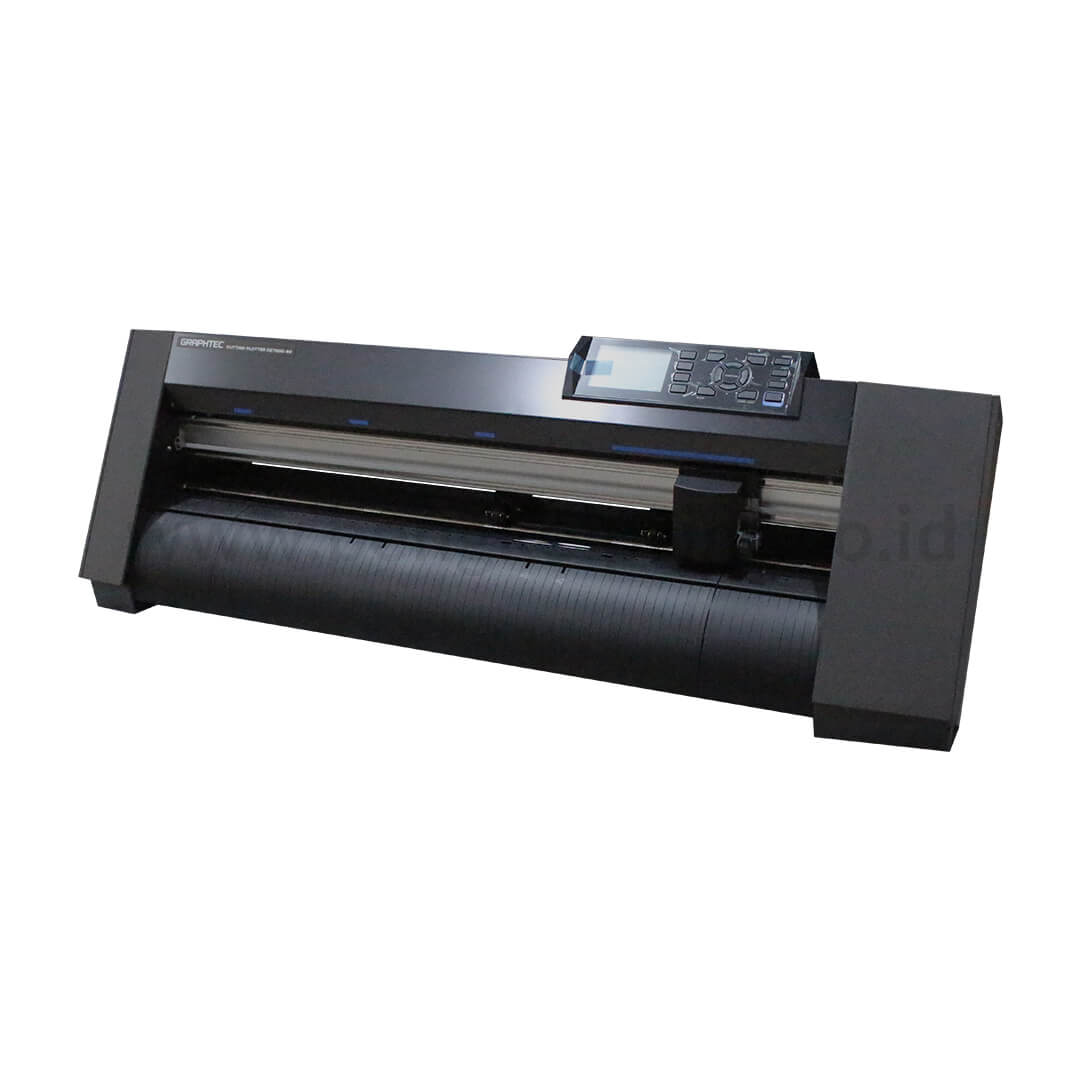

Mesin cutting stiker polyflex Graphtec CE7000 60 sekarang ini menjadi perbincangan hangat di dunia digital printing. Bagaimana tidak, Graphtec CE7000-60 adalah seri terbaru yang telah mengalami beberapa upgrade sehingga memiliki performa lebih prima dari mesin cutting sticker Graphtec type sebelumnya. Sebagai tempat jual Graphtec CE7000-60cm Bengkel Print akan me-review Mesin Cutting Sticker Graphtec CE7000 60CM. Penasaran ? Mari simak spesifikasi, kelengkapan dan fiturnya dibawah ini
Spesifikasi Graphtec CE7000-60
- Item : CE7000-60
- Configuration : Grit rolling type
- Drive Method : Digital servo drive
- Max. Cutting Area (WXL) : 603mm x 50m
- Cutting Area Of Accuracy : 583mm x 2m
- Cutting Area Of Accuracy : 583mm x 5m ( *optional using basket/ keranjang)
- Mountable media width : Min. 50mm – Max. 721mm ( 28 inch)
- Mountable roll media mass : 9kg
- Number of push rollers : 2 rollers
- Max. Cutting Speed : 900 mm/s at 45º direction
- Acceleration : Max. 21.2m/s2 at 45° direction
- Cutting Force : Max. 4.41 N ( 450gf)
- Min. Character Size : Approx. 5 mm alphanumeric
- Mechanical Resolution : 0.005mm
- Blade Types : Supersteel
- Pen Types : Oil-based ballpoint pen, Water-based fiber tip pen
- Media Types : Up to 0.25mm thickness Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
- Interface : USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
- Buffer Memory : 2MB
- Power Consumption : Up to 100W
- Operating Environtment : 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
- Guaranteed Accuracy : 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
- External Dimensions : Approx. 1005 × 582 × 1092 mm ( W X D X H)
- Extrernal Dimennsions : 1005 x 936 x 1092 mm (*3) With basket / keranjang )
- Weight : 23 kg and 25,2 Kg ( with basket)
- Compatible Os : windows 10/8.1/8/7 ,8 Mac OS 10.6 to 10.12 (Graphtec Studio : 10.6 10.12 : CM 4:10.7 10.12)
- Support Software (Download) : Cutting Master 4, Pro Studio, Graphtec Studio, Windows Driver
Accessories Graphtec CE7000-60
- 1 Power cord
- 1 USB Cable ( 2.9m long )
- 1 Cutting blade holder ( PHP33- CB09N-HS)
- 1 Fiber-tip pen holder
- 1 Water based fiber-tip pen
- 1 Manual Book
- 1 DVD-ROM ( User manual, Windows driver, Graphtec Pro Studio (Windows, 1 license), Graphtec Studio (Mac), Cutting Master4 )
- Garansi graphtec CE7000 60 ( Mainboard & power supply) 1 tahun
